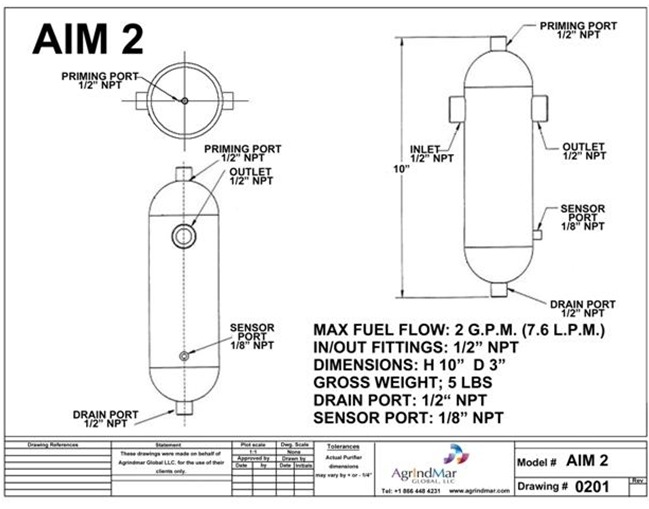

Click on drawing for downloadable PDF
Maximum total flow: 2 Gallons per Minute or 7.6 litres per Minute.
Inlet/outlet fittings: 1/2" NPT
Drain/Fill Fittings: 1/2" NPT
Maximum Height: 10 Inches
Diameter: 3 Inches

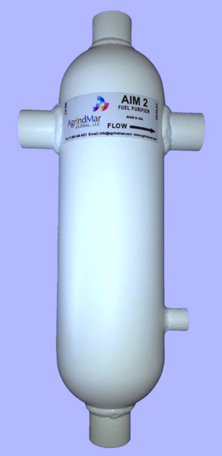

Due to it's compact size and relatively large flow capacity, the AIM 2 is ideal for use on small to medium sized engines, and is especially suited to Transport, Marine and Standby Generator use where space is often at a premium.
