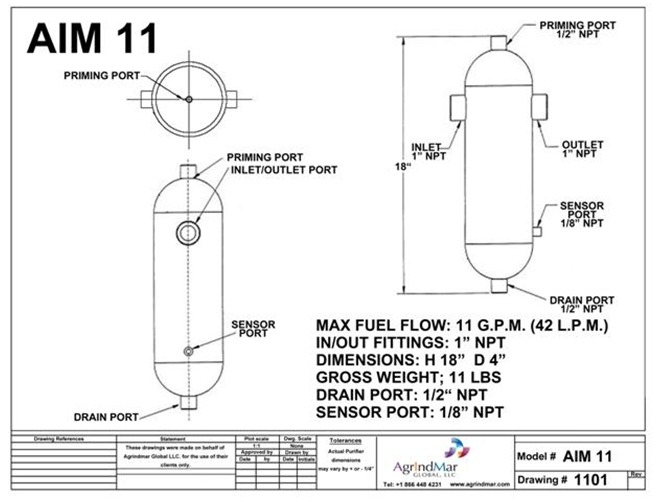

Click on Drawing for downloadable PDF
Maximum total flow: 11 Gallons per Minute or 42 litres per Minute.
Inlet/outlet fittings: 1" NPT
Drain/Fill Fittings: 1" NPT
Maximum Height: 18 Inches
Diameter: 4 Inches
Due to it's compact size and relatively large flow capacity, the AIM 11 is ideal for use on medium to large sized engines, and is especially suited to Transport, Marine and Standby Generator use where space is often at a premium. It is also perfectly suited for a fuel transfer system and cover most high performance diesel engines.
